BearTech Side Slidemount C4 DIY Starter Kit
Notice:
Angle wedge is no longer needed for C4 slidemount
Description
To support users with steep windshields and those who love creating custom setups, we are making the design files for our latest SlideMount C4 Source Available! If you are an advanced 3D printing enthusiast looking to modify and print your own perfect mount for personal use, this is the ideal project for you. To make the assembly process completely seamless, we are now offering a complete DIY Hardware Starter Kit. It gives you the foundational parts you need to start building, so you can take our Source Available design and create a custom mount with limitless possibilities.
Link for 3D printed slidemount C4 File
https://github.com/beartech-ca/Quick-mount
Share Your Custom Designs! Have you modified the CAD files or designed a unique mount for your specific vehicle? We’d love to see it! Feel free to create a pull request on our repository or email your design files directly to us. We will share your creations with the community so other users can benefit from your awesome work.
Highlight
We engineered this mount to solve the most common issues users face:
- 100% Magnet-Free (Press-to-Unlock): We ditched the magnets for a rock-solid mechanical lock. This means zero magnetic interference and no rattling.
What is included?

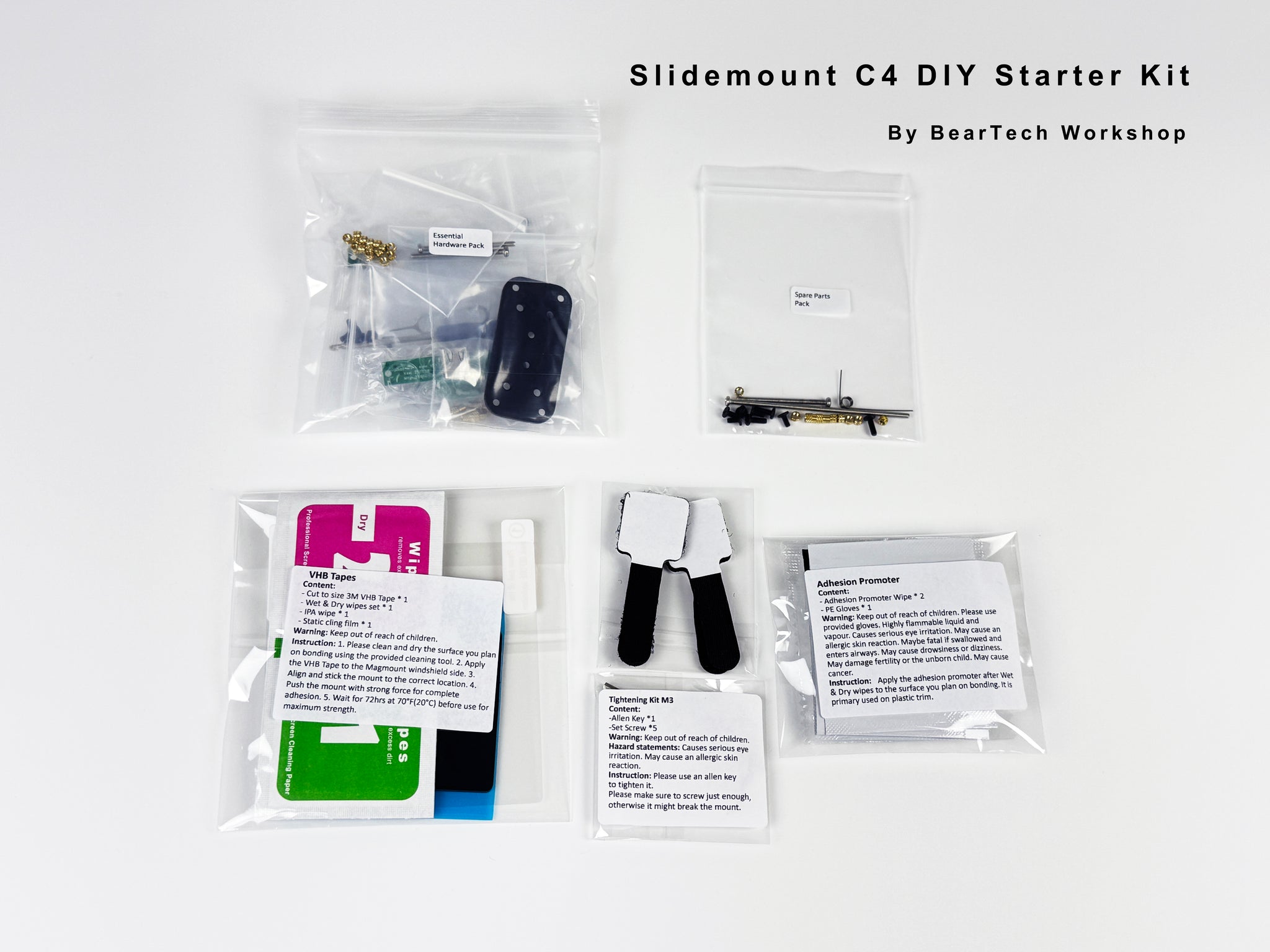

The SlideMount C4 DIY Starter Kit includes everything you need to assemble and install your custom mount, meticulously organized to make your build as smooth as possible. Inside the package, you will find:

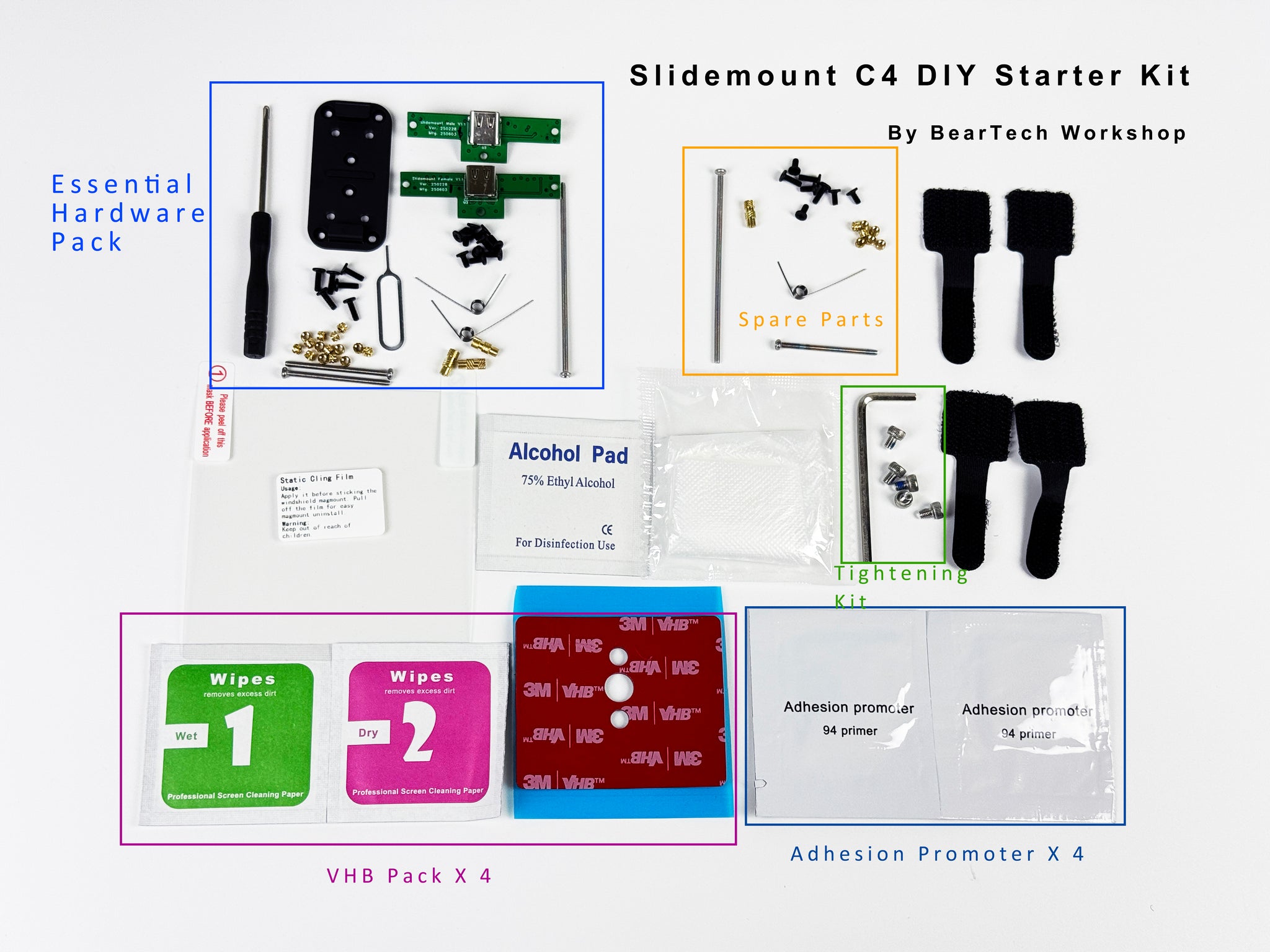

Essential Hardware Pack: The core components for your build, including the male and female PCBs, an aluminum C4 device bracket, a mini screwdriver, tension springs, brass heat-set inserts, standoffs, and all the necessary structural screws.
Cables: One 13cm Right Angle Head Type-C to Right Angle Head Type-C Cable (Connect the comma device and the Device Side Mount), one 45cm Right Angle Head Type-C to Stright Type-C Cable
Spare Parts: A backup supply of extra screws, heat-set inserts, and a tension spring, giving you peace of mind in case a tiny piece goes missing during assembly.
Tightening Kit: An Allen wrench (hex key) accompanied by five screws.
VHB Packs (x4): Everything needed for a perfect windshield application, featuring custom-cut 3M VHB tape, static cling film, wet/dry screen cleaning wipes, and alcohol pads.
Adhesion Promoters (x4): Packets of 94 Primer to ensure maximum bond strength between the VHB tape and your windshield mount.
Cable Management Kit: Four hook-and-loop cable ties to keep your final setup clean and organized.
Printing Material
Since the SlideMount will sit on your windshield directly under the hot sun, material choice is critical.
Our Top Recommendation: We strongly recommend printing your casing in ASA-CF (Carbon Fiber reinforced ASA). We use this exact material for our pre-built SlideMounts because it offers the absolute best durability, UV resistance, and heat deflection.
Alternative Materials: You can also successfully print your own parts using standard ASA, ABS, PA (Nylon), PC (Polycarbonate), or PETG. Any of these materials blended with Carbon Fiber (-CF) or Glass Fiber (-GF) will also work excellently for added rigidity.
Note: We do not recommend standard PLA, as it will warp in the heat of a parked car.
